Sintered Metal Sparger

Introduction

If you need top-performing spargers for your production, it is important that you find the right one. Sintered metal spargers offer quality performances for your production. It ensures even and smooth gas distribution to the liquid.

But how do you know which one is the quintessential one considering your purpose? Go through this article to learn details about sintered metal spargers and important information.

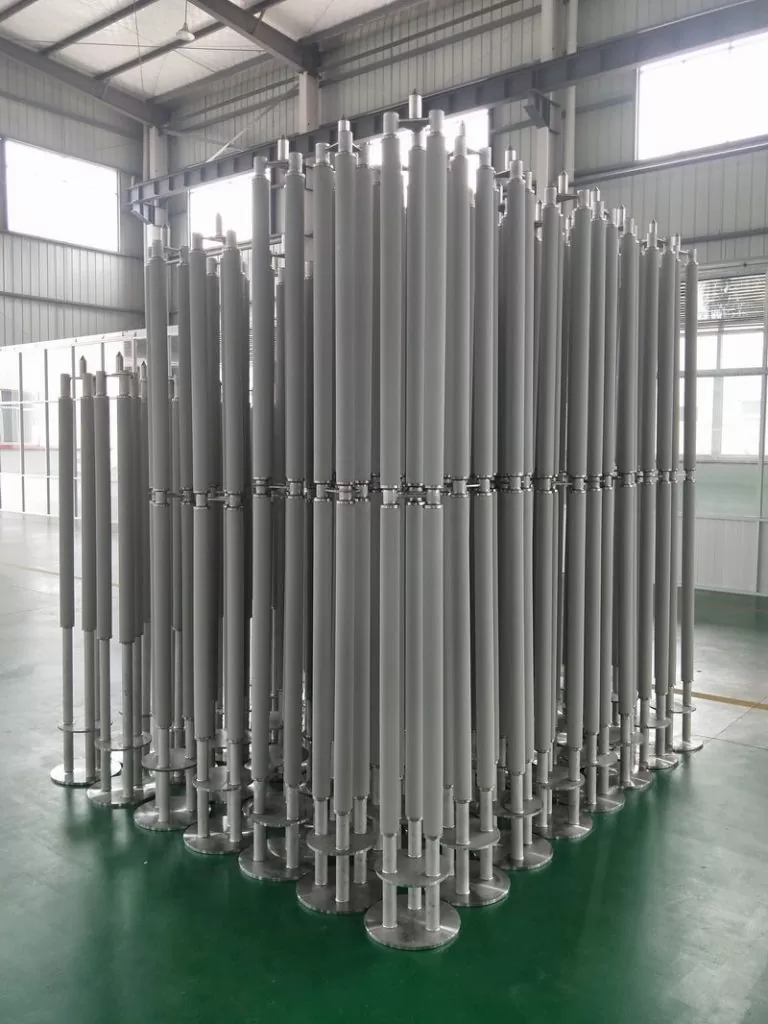

Sparger

What is Sintered Metal Sparger?

Sintered metal is a solid product that is made by applying the process of powder metallurgy. Here, different types of metals and alloys (bronze, nickel, stainless steel, brass, and titanium) are used.

On the other hand, Spargers are an industry tool designed to deliver gas into bioreactors, fermentation tanks, and other flotation cells. Also, it ensures the bubbles are dispersed evenly throughout the cell’s liquids.

In short,

  • It is a porous tube with fine holesthat ensures the perfect distribution of gases in liquids by thousands of tiny bubbles.
  • It is positioned below the surface of the tank.

Metal Sintering Process

The sparger elements or tubes are produced by using sintered metal powder. The powder metallurgy or metal sintering process is all about blending fine powder materials and pressing these powders to get the desired shape. After achieving the desired shape, the compressed part is heated in a controlled vacuum.

However, the process is divided into three main steps:

Selection of powder

According to the technical parameters provided by customers, Shinkai conducts professional analysis from the aspects of metal powder material, particle size and bulk density, and selects and recommends suitable metal film materials.

Compaction

Compress the metal powder into the desired shape. This is usually done with a die or mold under isostatic cool pressing. In order to achieve the desired shape, the metal powder is placed under high pressure. Some of the most common shapes for sinter metal filter elements include disks, rings, and cylinders.

Sintering

The sintered process is an essential part of achieving the required mechanical properties. A vacuum sintering furnace performs a heat treatment process by maintaining a controlled temperature. The heating time depends on the final part application, materials (that are used), and physical requirements.

Note that in this step, the properties can be adjusted by controlling the cooling rate.

Why Sintered Spargers?

Sintered spargers are manufactured by sintering powdered metals to serve a long-lasting operation time and can operate under high temperatures. Let’s understand the key factors below:

  • The sintered metal spargers produce 1 mm tiny bubbles than a drilled hole sparger.
  • It helps to increase the mass transfer rate of the reactions in a bioreactor.
  • Serve 5 micronsto 80 microns without welding or seams on the body.
  • Rust-free and durable at high pressure.

The Common Types of Sintered Metal Sparger

In the marketplace, there are mainly three types of spargers available. Let’s scroll down to learn more about their working fields and uses.

Porous Sparger

The sparger is made of sintered metal and used in lab scale-non agitated vessels. It helps to form bubbles 10-100 times larger than the pore size. However, there is a pressure drop across the sparger, and the holes can be blocked by growth. And that is the limitation of porous sparger.

Orifice Sparger

It is a perforated pipe that is used in the small stirred fermenters and placed below the impeller in the form of crosses or rings. The air holes are drilled under the surfaces of the holes, and their diameter is at least 6mm. In some cases, the sparger is used in yeast manufacture, effluent treatment, and production of SCP. The ideal size of the orifice is ~ ¾ of the impeller diameter.

Nozzle Sparger

It is a single open/partially closed pipe that is positioned below the impeller and used on a large scale. When air is passed through the nozzle sparger, there is lower pressure loss, which won’t get blocked. It is mostly used in the laboratory and industrial scale fermenter.

Another type of Sparger is Combined Sparger Agitator. The type is not as popular as others. Let’s check out below what it is.

Combined Sparger-agitator

This sparger is responsible for supplying air via the hallow agitator shaft and emitting air through the holes in the disc or blades of the agitator.

How Does Sintered Metal Sparger Work?

Earlier sparging only worked to discharge gas and included slurry backflow protection. But now, sparger technology usage is vast.

Sintered metal spargers are temperature and corrosion resistant. Generally, spargers have an area that is the connection point for gas & liquid. Sparger’s release even and consistent amounts of gas. The sparging process with higher efficiency gets finds bubble propagation.

When the sparger releases the gas, the generated bubbles encounter the liquid, and gas in smaller bubbles tends to be absorbed fast by the liquid. When several bubbles get merged, they form a large bubble making the surface lost.

The Most Common Features of Sintered Metal Sparger

As we all know, traditional bio-fermentation technology adds extra value in the field of innovation, because it allows higher gas absorption than standard by lowering energy costs. Higher or faster absorption helps to increase cycle times by saving time.

However, you may already get some idea about its features. For more detailed information, scroll down:

Rugged and Durable

The sintered metal sparger ensures trouble-free operation over many years with its full welded structure design and high structural integrity.

High Flow Rate

The sparger is made of the metal material sintering process, which can easily deal with a high tensile strength that is suitable for high flow rates and high-pressure applications.

Outstanding Aeration

The sparger comes with good permeability and pore size is wear-proof and has controllable porosity.

Uniform Porosity

The sparger offers different pore diameters so that you can control the size of bubbles as per the specific application.

Heat Resistance

High temperature and pressure resistance, up to 900℃

Corrosion Resistance

Help to increase the surface area almost 8-10 times than a drilled pipe sparger that ensures 100% seamless construction.

Structural Elements

In catalyst reaction, offer good mechanical properties, including shape stability, self-supporting elements, and support grid.

Uses

Filtration, washing, and drying in the pharmaceutical industry.

How to Choose the Right Sintered Metal Sparger?

In order to find out the right sparger for your purpose, where should you focus on? Well, these are the parts where you should be prioritizing.

Gas Flow & Pressure

The gas flow and pressure depend on the installation cell or working environment. A good quality sparger could stand against various process temperatures and offer sufficient gas flow, pressure, and existing gas velocity.

Air Compressor Capacity

Sintered metal spargers can be used in intrusive and non-intrusive tangential pipelines for steam injection, wastewater treatment, and volatile stripping. That means it offers a good quality air compressor capacity.

Speed of Discharged Bubble

The most important part is to generate high volumes of fine bubble size; it helps optimize mass transfer and reduce gas consumption and energy costs. However, it has been shown that a 1mm bubble makes contact faster (6 times) with the gas/liquid than a 6mm bubble.

Durability of Metal

Stainless steel metal materials are much more durable than other non-metals. Also, metal materials that are made through sintering are also strong. Therefore, look for durable materials like steel or sintered ones for your metal sparger. You will be assured of smooth operation for a long time.

Endure Mechanical Shocks

A well-welded sparger can work in an extremely rough and corrosive environment, resist high temperatures, and endure mechanical shocks. This type of situation doesn’t affect the porous metal in question. Thus those can be used in a wide range of conditions.

Amazing Benefits of Using Sintered Metal Sparger

The sintered metal sparger is made of durable metals that are sintered. This has some advantages that make it different and even more usable than the other metal sparger on the market. Here are some of the benefits mentioned about them.

pH Level Adjustment

Spargers generate dispersed gas. In a chemical treatment tank, chemical plants require adjusting the pH levels (measurement of alkaline & acid). In that situation, spargers ensure the pH level, liquid flowing, etc.

Maximize surface area

Sintered metal spargers release gas evenly through the gas-liquid contact area. This gas emits in the form of bubbles. The bubble propagation ensures a large surface area so that mass transfer is ensured.

Gas and energy cost saving

Sintered metal sparger generates high-volume fine bubbles. As you already understand, bubble size is a vital factor for mass transfer. As a whole, this helps reduce the consumption of gas and saves the cost of energy.

The even distribution of gas

Through the tiny pores, the sintered Metal sparger ensures the gases are evenly distributed in the liquids. The whole process results in the fast dissolution of gas into the liquid.

Shinkaifilter Sintered Metal Sparger

Shinkaifilter manufacture customized and production-oriented sintered metal spargers. Shinkai’s highly trained engineers make these products from membrane materials. However, other materials (304L, 316L, and nickel alloys) are also used. Also, if customers want, Shinkai can help design the right sparger from their specific data. They can use the system for:

  • Bio-fermentation sparger Static sparger. Our solution can ensure faster gas absorption and lower energy costs by reducing agitation.
  • Dynamic pipeline sparger porous metal micro sparger

Shinkai’s spargers are well compliant with industries of bioreactors, fermentation tanks, CO2 sparging for carbonated beverages, cooking oil oxygen stripping, carbonated beverages, fine chemical industry, aquaculture industry, hydrogen sparging for chemical hydrogenation reactions, and many more. The spargers made by Shinkai have helped many customers to augment their manufacturing efficiency.

Shinkai’s products are different because of their stable shape, high-temperature resistance, corrosion resistant, and self-supporting elements.

Case Studies of Sintered Metal Sparger Applications

We, Shinkaifilter, are always conscious of researching and adopting the newest technology to our manufactured products aside from developing new ones. Our professionals are working relentlessly to ensure the custom-designed best-suited products for our customers. Our effort has benefitted us in producing some market-winning cutting-edge sintered metal spargers.

Here are some of the case studies from our clients that have been described.

Application 1: One of our clients was from a carbonated beverage company. A carbonated beverage is made of watery liquids intermixing with carbon dioxide. They were facing trouble with the chemical fractions as they needed tiny uniform bubbles to turn carbon dioxide into carbonated. After they changed their old sparging to our new sintered metal sparger, the procedure also started to change positively for them.

Application 2: A pharmaceutical company needed to gas transferring process where the bubbles will be 1mm. We understood their requirements. To ensure efficient gas transfer, they need high volumes of bubbles. We build a sintered metal sparger for them. As a result, they managed to optimize and reduce gas consumption.

There it is- case studies from our clients who have used and getting benefits from our spargers. If you need spargers for your purpose or do not know what to do, contact us so that we can discuss and start the solution process.

Conclusion

As a vital part of the production system, you need to ensure your sparger is one of a kind. At  Shinkaifilter, we manufacture and develop some of the best quality sintered metal spargers. Contact us today to learn more about the sparger system and pricing.
