Gas Sparging

Gas Sparging Introduction

Have you ever thought about using the exhaust gas from a steel mill to produce acetic acid, beverages, and others things? The process requires dealing with frequent gas flow onto the liquid. The porous sintered meta sparger is a practical and must-have element that can generate airflow evenly and diffuse bubbles of a specific size.

Are you feeling excited to explore more? Go through the article: Gas Sparger to acknowledge details and essential information related to the material’s features.

Sintered Metal Filter Elements, Filtration System Solutions

What is Gas Sparging?

Sparging is a technical term that has two different meanings. First, it indicates a process of injecting Gas into a liquid—for example, carbonated beverages and water treatment. Second, when you spray liquid onto a solid, the act refers to sparging technique—for example, making beer.

On the contrary, Gas sparging, also known as gas flushing, refers to injecting a gas through a diffuser into a liquid phase. The technique is involved in passing finely dispersed gas bubbles through the liquid and is used both in stripping oxygen from liquids and intensifying chemical or biological reactions.

Now that you have a clear idea about gas spaying, it’s time to explore some industrial purposes and why the Gas sparging technique is used. Let’s get started!

Types of Gas Sparger

Sparger is a method that introduces Gas into a fermenter where aeration provides sufficient oxygen for the organism. However, fine bubble aerators are an essential part of operating perfectly.

And in the marketplace, different types of spargers are used for various industrial purposes. Below we mention and describe other sparger functionalities and where it is used. Let’s take a quick look!

Porous Sparger

The gas sparger is made of sintered metal. It is helpful to generate airflow uniquely and diffuse bubbles of a specific size (10-100 times larger than pore size). However, the porous gas sparger is used in lab scale-non-agitated vessels; because it effectively transfers Gas to the liquid.

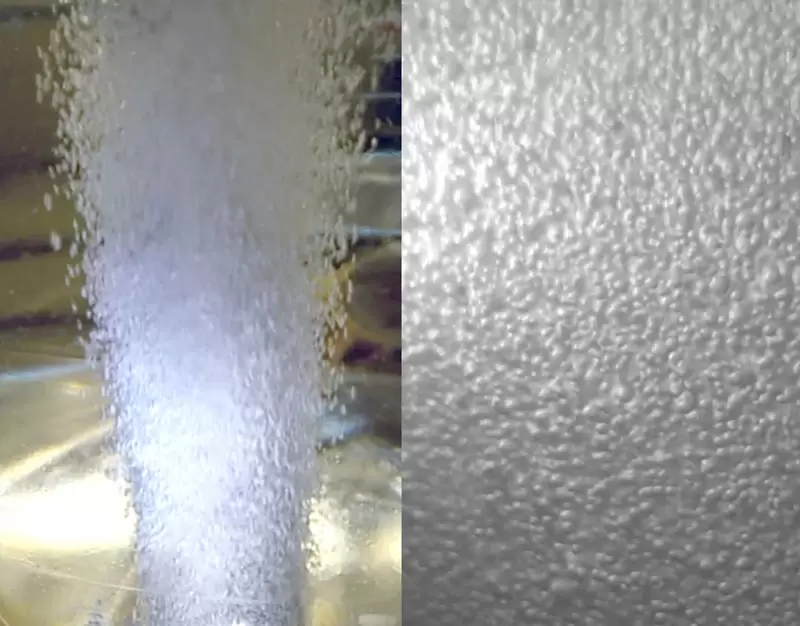

The surface has millions of tiny pores that produce countless tiny gas bubbles essential for reducing gas consumption and optimizing mass transfer.

Orifice Sparger

It is a perforated pipe used in a small stirred fermenter and keeps the impeller in crosses or rings. Different sizes are available in the marketplace, but the suitable impeller diameter size should be ~¾.

The air holes are drilled on the under surfaces, but the size of the holes should be at least 6mm in diameter. Orifice sparger is mainly used in agitation and out agitation in exceptional cases like yeast manufacture, effluent treatment, and production of SCP.

Nozzle Sparger

The sparger nozzle is also classified as an “open tank heater,” a single open/partially closed pipe used on a large scale. The pipe is positioned centrally below the impeller. Nozzle sparger is popular for its high-velocity power. No air is blocked when air is passed through this pipe, and a lower pressure loss occurs.

However, the condensing steam and heated suction liquid can be perfectly mixed in the diffuser. For offering a quiet operation, the nozzle sparger is the best pick; because of its perfect size bubbles and enhances circulation.

External Sparger

An external sparger (static mixer) is made with porous sintered metal and used in the industrial de-inking facility, but a 10mm impeller diameter is suitable for every function. However, the external sparger is helpful in dissolving Gas into liquid where the time and volume are reduced to ensure perfect mixing.

The most part is to increase the surface area of the Gas, and this sparger ensures fast absorption into the liquid by creating small bubbles.

Combined Sparger Agitator

The sparger agitator supplies air via the hallow agitator shaft, and the air is emitted through holes (discs or blades of the agitator). It is useful to minimize the flow of distribution (mixing and mass transfer). The combined sparger agitator offers unique features for utilizing substrate gasses and energy.

However, energy consumption can be easily minimized if the flow distribution of air is controlled by oxygen. And the dual sparging mode is used for mass production in different food chains.

Amazing Benefits of Porous Sintered Gas Sparging

Porous sintered metal as a gas sparging can preserve the quality and longevity of food products; it helps eliminate undesirable substances and inhibit unwanted chemical reactions with oxygen. Do you want to know why you should use porous sintered metal?

For more details, let’s check out below:

  • Porous sintered metal is useful for breaking the Gas into micron-sized bubbles and increasing the oxygen concentration in the fermentation broth.
  • The technique helps reduce pollution and production costs by up to 30%.
  • Ensure a mild environment for the fermentation broth.
  • Porous sintered metal can reduce gas consumption compared to other gas distribution methods.
  • The metal is also helpful in reducing the disturbance of fermentation broth.
  • Porous gas spargers require less energy than mechanical stirring.
  • Ensure enough oxygen for growth and productivity.
  • Help to achieve the highest conversion rate.
  • Under a particular oxygen concentration, Gas sparging ensures a proportional oxygen supply to the fermented exhaust gas.
  • Increase gas distribution efficiency and bacterial fermentation efficiency.

How to Choose the Right Gas Sparger?

The spargers are responsible for creating smaller and more bubbles in the fermentation tank that ensure more gas/liquid contact surface area by reducing both time and the amount of Gas in the liquid. However, the sparger has thousands of pores on the surface.

Do porous sintered spargers provide a rugged construction that is temperature and corrosion-resistant? Of course, the perfect metal (porous sintered) provides you with all industrial facilities. Let’s take a look below to explore more about how you can choose the right one:

  1. The suitable diameter or size of the sparger for in-tank or vessel sparging can maintain liquid pressure and temperature equally.
  2. Provide you with actual gascompressor capacity.
  3. You can easily handle the perfect gas exit velocity with the perfect spargers.
  4. Offer you frequent and smooth gas flow into the liquid of the fermentation tank.
  5. From a single-element side-mounted type to cross-tank flanged, all varieties are available.
  6. The spargers should come with various end fittings like (a) type a hex nipple sparger element and (b) type g elements for welding purposes.
  7. The fine bubble propagation will be able to provide maximum surface area for “mass transfer.”

What things need to consider before ordering?

Before choosing or confirming the order of gas sparger, pay attention to some crucial factors, including –

  • Pore size (particles size your industry needs to keep out),
  • Pressure drop (the pressure loss that can be occurred gases or liquids flow through the tank or filter),
  • Temperature range (the final products temperature range),
  • Strength of the sparger to deal with the operation successfully,
  • The flow rate (gas bubbles into liquid) through the filter,
  • Operating fluid flow, etc.

However, to order or confirm buying always prefer to order from ISO certificate and many patent awards certificates companies like Shinkaifilter to avoid poor metals and other manufacturing issues.

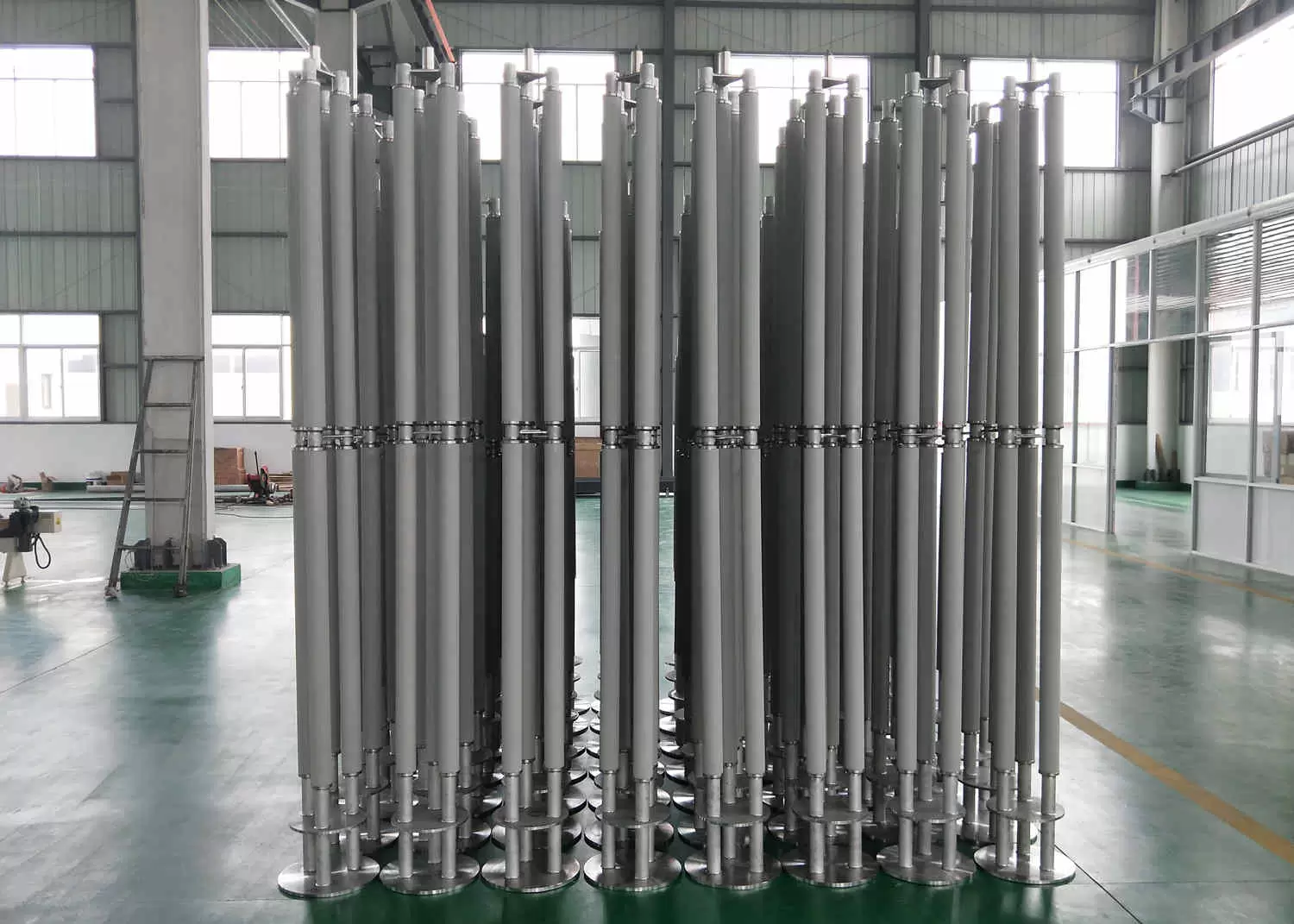

Shinkai Gas Sparger Product Description

Shinkai has years of experience in this field to serve full-process customization solutions with proper research. Our gas sparger is used in the fermentation equipment of different industries worldwide with excellent performance of fast flow rate, outstanding aeration effect, and pressure resistance; the gas sparger deal with different operations.

By increasing production, gas transfer, and perfect-size bubbles, Shinkai’s porous sintered metal improves the upstream reactor. All you need is to provide the size of the fermentation tank and the amount of aeration. After that, our professional and industry expert engineers will serve you with a customized set of sparge and full-process system solutions.

Features of Shinkai Porous Sintered Gas Sparger

Are you curious to explore why porous sintered metal? And what is the reason to use it as a gas sparger in your industrial operations? Well, the features of the Shinkai gas sparger will answer your queries. Let’s take a look at below:

Rugged and Durable

The porous metal can be used for many years compared with other non-metallic materials. The spargers offer trouble-free operation for their fully welded structure design and high structural integrity.

High Strength

The porous sparger is made with sintering metal so that it can deal with high-pressure strength and is suitable for high flow rates.

Uniform Porosity

The metal facilitates uniform pore diameters so that you can control the size of bubbles generated according to the specific application.

Heat Resistance

Porous metal spargers can withstand higher temperatures even in corrosive environments. Also, it is completely free from mechanical shock or thermal cycling.

Reusability

High-quality porous metal can be used for different chemical or other industrial purposes, and the efficiency of this metal can be restored to close to the original state.

Easy to Use

It can be easily connected with an oxygen aeration pump to the stainless steel diffusion and ensure frequent beer flows through the line. There is no need to worry about work satisfaction.

Multiple Size

We offer full-process customized design solutions with standard diameters. Only you need to provide the size of the fermentation tank and the required amount of aeration.

Application of Gas Sparger

Shikaifilter’s porous sintered metal (gas sparger) offers a variety of solutions to serve different industries like chemicals, food and beverage, wastewater management, and others. With our customized design solution, you can benefit more by reducing energy and consumption costs.

Here, we enlisted some industrial applications of our porous metal sparger:

  • Introduce air into the fermentation process (such as beer and ethanol fuel) during production.
  • In the paper-making process, porous spargers add carbon dioxide (CO2) to neutralize acidic waste.
  • Help to speed up decomposition and increase microbial activity in the aeration of sewage.
  • In the refinery cracking operation, porous sparger metal introduces hydrogen successfully and effectively.
  • In the containment area, porous metal is helpful in increasing the oxygen content of fish and other aquatic organisms.
  • Ensure perfect measurement and introduce nitrogen and carbonated beverages into food.
  • Vastly used in the production of wine, fruit juice, and edible oil.
  • Increase product life and reduce extra energy costs.
  • Helpful in injecting gas to adjust the pH in the waste or process stream.
  • Anyone can use Shinkaifilter’s porous sparger to sparger hydrogen as a series of chemical reaction processes, including hydrogen water filter and hydrogen-rich water maker.

Case Studies of Gas Sparging

We, Shikaifilter, are always conscious of proper research and prefer to adopt new technology to offer you advanced products that fulfill your industrial purposes. With the help of our experienced engineers and consultants, we have gained this popularity.

However, our custom-designed system solutions and high-quality material products increase productivity by reducing unwanted costs. Here are some case studies from our honorable clients who notice benefits after using our market-winning sintered metal gas spargers.

Case Study1: One of the renowned food and beverage industries in Singapore faced difficulties in maintaining a well-balanced fermentation method (time and energy saving). And to solve these issues, they applied various spargers; but in the end, the result didn’t meet their satisfactory level.



After that, they installed our porous sintered gas sparger and observed the change in the meantime, because it helped to preserve the quality and longevity of food products. Also, it could easily reduce undesirable substances and avert unwanted chemical reactions.

Case Study2: In the chemical industry, the most crucial thing is to inject a stream of fine gas bubbles in an effective, fast, and smooth way to ensure a perfect chemical reaction. One of our clients from the chemical industry contact us to replace harsh chemical preservation methods.

With the help of expert engineers, we customize the sparger as per their requirements. And after inserting the sparger, they find out excellent ways to resolve the oxidation challenge without adding any reactive substances to the liquid.

So, that’s it, but Shinkaifilter has different client stories who use other products and notice the positive changes responsible for boosting their business. All our filtration, separation, and other products can be used for various applications and fields. Feel free to contact us and get your best.

Conclusion

Shinkaifilter’s engineers are always here to help you by cutting the extra costs invested in unwanted materials and ensuring the best product performance to increase production.

All our products and solutions are designed to meet all industrial purposes by reducing pollution and extra costs. Feel free to contact us at any time.
