Sinter Powder Metal Filter Cartridge

Description

Shinkai offers a wide range of cleanable all-metal powder filter cartridges for filtration in critical applications. Our filter cartridges perform in liquid and gas applications under the harshest conditions of temperature, pressures and corrosion.

Sinter metal filter cartridge (XKP-IS) is manufactured by metal powder without adding adhesive. Formed under isostatic cool pressing and sintered with high temperature vacuum. The size and distribution of the pores can be controlled by the metal powder.

Features

– High Permeability
– Mean Pore Size & Particle Size Retention
– Capillary Attraction
– Mechanical Properties & Thermal Conductivity
– High temperature resistance, up to 900℃.
– Corrosion resistance
– Good back flush flow and durable performance

Sintered Metal Filter Elements, Filtration System Solutions

Specifications

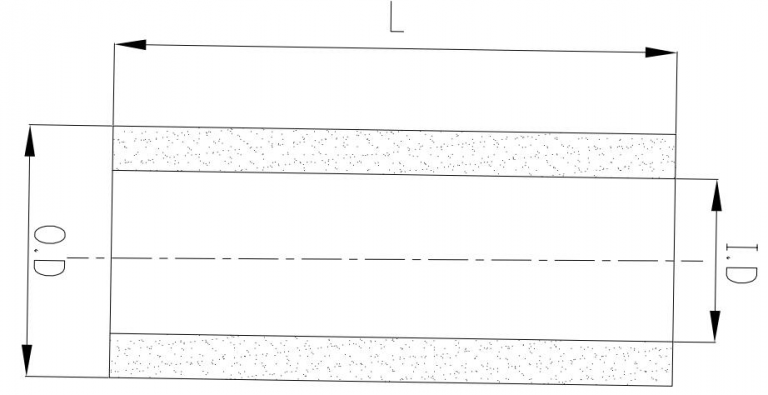

– Dimensions: Nominal or Customized
– Outside Diameter (OD): 10~400 mm
– Lengths: 10 ~ 3000 mm

Sintered Metal Filter Elements, Filtration System Solutions

Materials of Construction
– Stainless steels (304L, 316L)
– Nickel
– Titanium
– Monel®
– Inconel®
– Hastelloy® B, C and X
– Special materials – Contact Shinkai

Applications
-In-line filtration of industrial processes
-Chemical Processing
-Gas lines in manufacturing equipment
-Petroleum Refining
-Liquid lines in manufacturing equipment
-Power Generation.

Sinter powder metal filter cartridge
